Answer the following questions using the diagrams provided, which represent cross sections of bacterial cell walls.
a. Which diagram represents a gram-positive bacterium? How can you tell?

b. Explain how the Gram stain works to distinguish these two types of cell walls.
c. Why does penicillin have no effect on most gram-negative cells?
d. How do essential molecules enter cells through each wall?
e. Which cell wall is toxic to humans?

Verified step by step guidance

1. For part (a), identify the diagram with a thick peptidoglycan layer and no outer membrane as the gram-positive bacterium. Gram-positive bacteria have a thick, multilayered peptidoglycan cell wall that retains the crystal violet stain, appearing purple under a microscope.
2. For part (b), explain the Gram stain process: crystal violet dye is applied first, then iodine, which forms a complex with the dye. In gram-positive bacteria, the thick peptidoglycan traps this complex, so the cells remain purple after a decolorizer is applied. In gram-negative bacteria, the thinner peptidoglycan and outer membrane allow the dye to be washed out, so they take up the counterstain (usually safranin) and appear pink/red.
3. For part (c), discuss that penicillin targets the synthesis of peptidoglycan by inhibiting enzymes involved in cross-linking. Gram-negative bacteria have an outer membrane that acts as a barrier, preventing penicillin from reaching the peptidoglycan layer effectively, making them less susceptible or resistant to penicillin.
4. For part (d), describe how essential molecules enter each cell type: in gram-positive bacteria, molecules pass through the thick but porous peptidoglycan layer directly into the plasma membrane. In gram-negative bacteria, molecules must pass through porin proteins located in the outer membrane before reaching the periplasmic space and then the plasma membrane.
5. For part (e), identify the gram-negative cell wall as toxic to humans because it contains lipopolysaccharides (LPS) in the outer membrane. LPS acts as an endotoxin that can trigger strong immune responses, leading to symptoms such as fever and septic shock.

Key Concepts

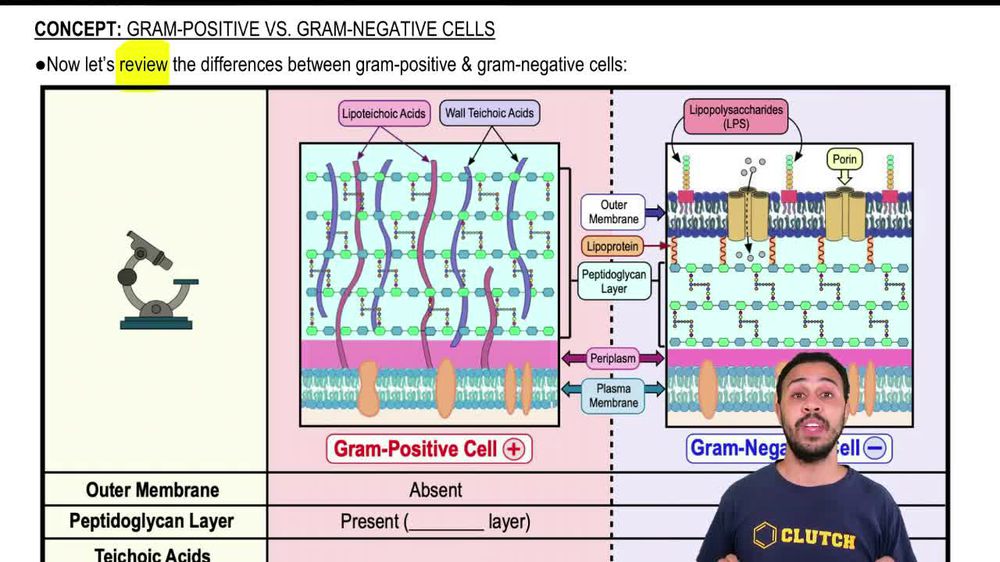

Gram-Positive vs. Gram-Negative Cell Walls

Gram-positive bacteria have a thick peptidoglycan layer in their cell walls, which retains the crystal violet stain, appearing purple under a microscope. Gram-negative bacteria have a thinner peptidoglycan layer and an outer membrane containing lipopolysaccharides, causing them to appear pink after Gram staining. These structural differences are key to identifying and classifying bacteria.

Mechanism of the Gram Stain

The Gram stain differentiates bacteria based on cell wall composition. Crystal violet dye penetrates all cells, but the thick peptidoglycan in gram-positive cells traps the dye after iodine treatment. Alcohol decolorization removes the dye from gram-negative cells due to their outer membrane, allowing counterstaining with safranin to show pink color. This process highlights structural differences.

Antibiotic Action and Cell Wall Permeability

Penicillin targets peptidoglycan synthesis, which is abundant in gram-positive bacteria, making them susceptible. Gram-negative bacteria resist penicillin because their outer membrane blocks the drug's access to the peptidoglycan layer. Additionally, essential molecules enter gram-positive cells mainly through the thick peptidoglycan, while gram-negative cells use porin proteins in their outer membrane for selective permeability.
