Draw a line-angle formula for each compound.
a. CH₃COCH₂CHCHCOOH
b. NCCH₂COCH₂CHO

Verified step by step guidance

1. Identify the functional groups in each compound. For compound (a), CH3COCH2CHCHCOOH, note the presence of a ketone (CO), a carboxylic acid (COOH), and a double bond (CH=CH). For compound (b), NCCH2COCH2CHO, identify the nitrile (NC), ketone (CO), and aldehyde (CHO) groups.
2. For compound (a), start by drawing the longest carbon chain. The backbone consists of six carbon atoms. Use a zigzag line to represent the carbon chain, with each vertex representing a carbon atom.
3. Add the functional groups to the carbon chain for compound (a). Place the ketone group (C=O) on the second carbon, the double bond between the fourth and fifth carbons, and the carboxylic acid (COOH) at the end of the chain.
4. For compound (b), draw the longest carbon chain, which consists of five carbon atoms. Again, use a zigzag line to represent the carbon chain.
5. Add the functional groups to the carbon chain for compound (b). Place the nitrile group (C≡N) at the beginning of the chain, the ketone group (C=O) on the third carbon, and the aldehyde group (CHO) at the end of the chain.

Key Concepts

Line-Angle Formula

The line-angle formula, also known as skeletal structure, is a simplified representation of organic molecules. In this notation, carbon atoms are represented as vertices or ends of lines, and hydrogen atoms attached to carbons are usually omitted. This method highlights the carbon skeleton and functional groups, making it easier to visualize complex organic structures.

Functional Groups

Functional groups are specific groups of atoms within molecules that have characteristic properties and reactivity. In organic chemistry, recognizing functional groups like ketones (C=O), carboxylic acids (COOH), and nitriles (CN) is crucial for understanding the chemical behavior of compounds. They determine the molecule's reactivity and interactions with other substances.

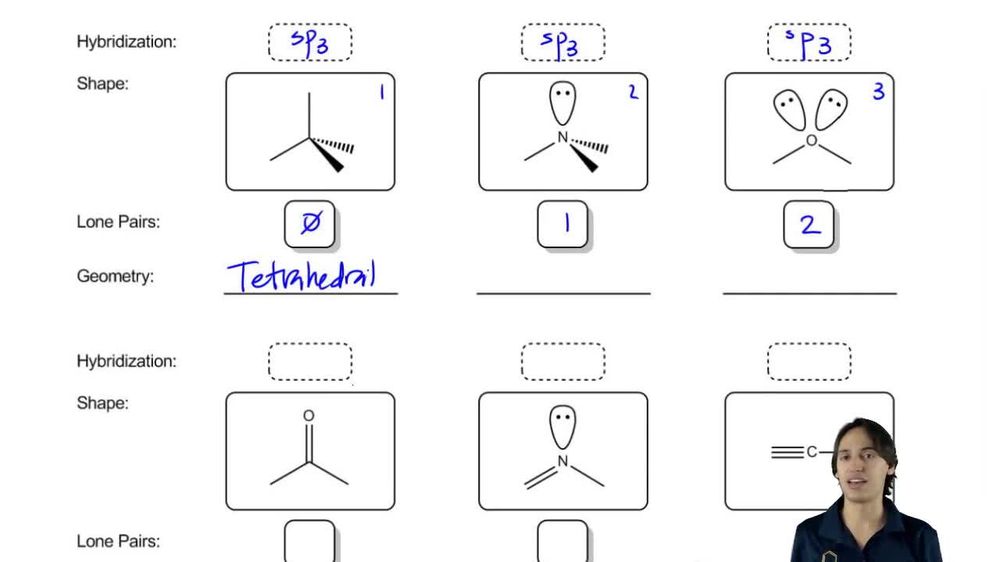

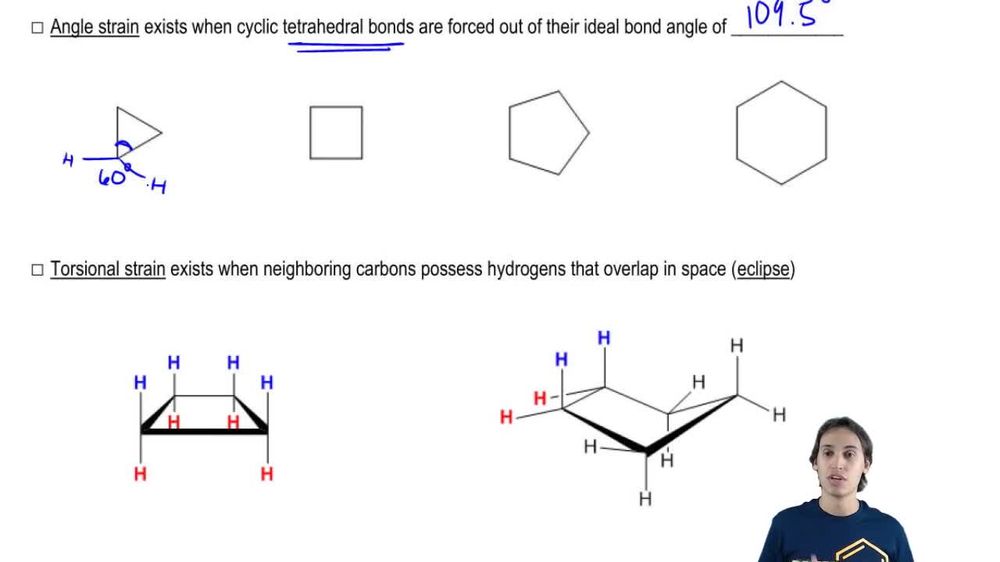

Molecular Geometry

Molecular geometry refers to the three-dimensional arrangement of atoms within a molecule. Understanding the geometry is essential for drawing accurate line-angle formulas, as it affects the molecule's shape and properties. For example, knowing that carbon typically forms four bonds in a tetrahedral arrangement helps in correctly positioning atoms and bonds in the skeletal structure.
